Instructional Buttons

[sadboilogan]

Here is some code that will allow you to create nice, clean native buttons to use on things like menus!
(May or may not be native like since its based on some of R* original code for the buttons :p)

Here is the code:

function ButtonMessage(text)
    BeginTextCommandScaleformString("STRING")
    AddTextComponentScaleform(text)
    EndTextCommandScaleformString()
end

function Button(ControlButton)
    N_0xe83a3e3557a56640(ControlButton)
end

function setupScaleform(scaleform)
    local scaleform = RequestScaleformMovie(scaleform)
    while not HasScaleformMovieLoaded(scaleform) do
        Citizen.Wait(0)
    end

    -- draw it once to set up layout
    DrawScaleformMovieFullscreen(scaleform, 255, 255, 255, 0, 0)

    PushScaleformMovieFunction(scaleform, "CLEAR_ALL")
    PopScaleformMovieFunctionVoid()

    PushScaleformMovieFunction(scaleform, "SET_CLEAR_SPACE")
    PushScaleformMovieFunctionParameterInt(200)
    PopScaleformMovieFunctionVoid()

    PushScaleformMovieFunction(scaleform, "SET_DATA_SLOT")
    PushScaleformMovieFunctionParameterInt(0)
    Button(GetControlInstructionalButton(2, 191, true))
    ButtonMessage("This is enter!")
    PopScaleformMovieFunctionVoid()

    PushScaleformMovieFunction(scaleform, "SET_DATA_SLOT")
    PushScaleformMovieFunctionParameterInt(1)
    Button(GetControlInstructionalButton(2, 194, true)) -- The button to display
    ButtonMessage("This is backspace!") -- the message to display next to it
    PopScaleformMovieFunctionVoid()

    PushScaleformMovieFunction(scaleform, "SET_DATA_SLOT")
    PushScaleformMovieFunctionParameterInt(2)
    Button(GetControlInstructionalButton(2, 193, true))
    ButtonMessage("This is space!")
    PopScaleformMovieFunctionVoid()

    PushScaleformMovieFunction(scaleform, "SET_DATA_SLOT")
    PushScaleformMovieFunctionParameterInt(3)
    Button(GetControlInstructionalButton(2, 192, true))
    ButtonMessage("This is tab!")
    PopScaleformMovieFunctionVoid()

    PushScaleformMovieFunction(scaleform, "DRAW_INSTRUCTIONAL_BUTTONS")
    PopScaleformMovieFunctionVoid()

    PushScaleformMovieFunction(scaleform, "SET_BACKGROUND_COLOUR")
    PushScaleformMovieFunctionParameterInt(0)
    PushScaleformMovieFunctionParameterInt(0)
    PushScaleformMovieFunctionParameterInt(0)
    PushScaleformMovieFunctionParameterInt(80)
    PopScaleformMovieFunctionVoid()

    return scaleform
end


Citizen.CreateThread(function()
    form = setupScaleform("instructional_buttons")
    while true do
        Citizen.Wait(0)
        DrawScaleformMovieFullscreen(form, 255, 255, 255, 255, 0)
    end
end)

Gist version:
https://gist.github.com/sadboilogan/c9e33f678586b02f68315c7ca3ceec33

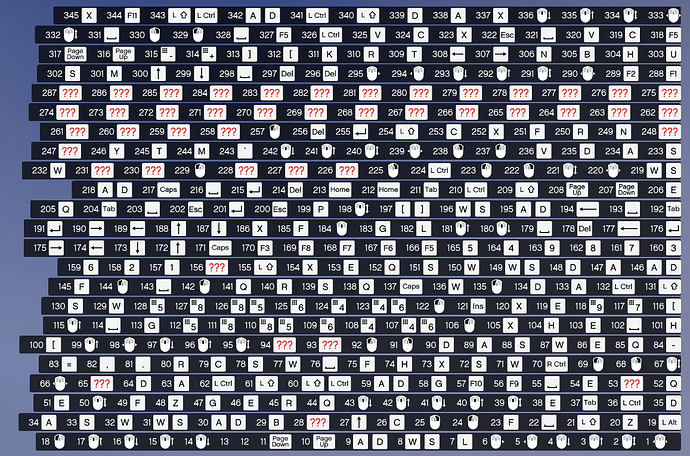

These will change too depending on whether or not you are using a controller, here is also a list of button images:

and how they look on controller:

[Scott_UK]

Very useful, thank you.

[Briglair]

Indeed useful

[louyikee]

Nice release !

[FR_SkaaYz]

GetControlInstructionalButton(2, 191, true)

When i remove it:

BeginTextCommandScaleformString(“STRING”)

Wtf?

Could you help me? It’s native but they are nil Need dependencies?

PS: I installed the last server version and i’ve the same problem.

[Vinipux322]

manifest version

[A6-Digital]

can we change font by SetTextFont(fontId)?

[negbook]

if you want to change background color,It must a call ‘SET_BACKGROUND’ after ‘SET_BACKGROUND_COLOR’ and put it before ‘DRAW_INSTRUCTIONAL_BUTTONS’

function setupScaleform(scaleform)
    local scaleform = RequestScaleformMovie(scaleform)
    while not HasScaleformMovieLoaded(scaleform) do
        Citizen.Wait(0)
    end
    PushScaleformMovieFunction(scaleform, "CLEAR_ALL")
    PopScaleformMovieFunctionVoid()

    PushScaleformMovieFunction(scaleform, "SET_CLEAR_SPACE")
    PushScaleformMovieFunctionParameterInt(200)
    PopScaleformMovieFunctionVoid()

    PushScaleformMovieFunction(scaleform, "SET_DATA_SLOT")
    PushScaleformMovieFunctionParameterInt(0)
    Button(GetControlInstructionalButton(2, 191, true))
    ButtonMessage("This is enter!")
    PopScaleformMovieFunctionVoid()

    PushScaleformMovieFunction(scaleform, "SET_DATA_SLOT")
    PushScaleformMovieFunctionParameterInt(1)
    Button(GetControlInstructionalButton(2, 194, true)) -- The button to display
    ButtonMessage("This is backspace!") -- the message to display next to it
    PopScaleformMovieFunctionVoid()

    PushScaleformMovieFunction(scaleform, "SET_DATA_SLOT")
    PushScaleformMovieFunctionParameterInt(2)
    Button(GetControlInstructionalButton(2, 193, true))
    ButtonMessage("This is space!")
    PopScaleformMovieFunctionVoid()

    PushScaleformMovieFunction(scaleform, "SET_DATA_SLOT")
    PushScaleformMovieFunctionParameterInt(3)
    Button(GetControlInstructionalButton(2, 192, true))
    ButtonMessage("This is tab!")
    PopScaleformMovieFunctionVoid()

    PushScaleformMovieFunction(scaleform, "SET_BACKGROUND_COLOUR")
    PushScaleformMovieFunctionParameterInt(0)
    PushScaleformMovieFunctionParameterInt(0)
    PushScaleformMovieFunctionParameterInt(0)
    PushScaleformMovieFunctionParameterInt(22)
    PopScaleformMovieFunctionVoid()

    PushScaleformMovieFunction(scaleform, "SET_BACKGROUND")
    PopScaleformMovieFunctionVoid()

    PushScaleformMovieFunction(scaleform, "DRAW_INSTRUCTIONAL_BUTTONS")
    PopScaleformMovieFunctionVoid()




    return scaleform
end

[IllidanS4]

Is there a way to obtain the text on the button code returned from GetControlInstructionalButton, or to otherwise get the name of a key assigned to a control code?

[nta]

Edited the snippet to add this line:

    -- draw it once to set up layout
    DrawScaleformMovieFullscreen(scaleform, 255, 255, 255, 0, 0)

so that aspect ratios other than 16:9 work correctly.
