Please help me fix the issue when setting up my fivem cache server and proxy i get corrupted file error as you can see in the image i inculded
Steps of installation:
- installed fresh ubuntu in different server.
- installed Nginx with stream module

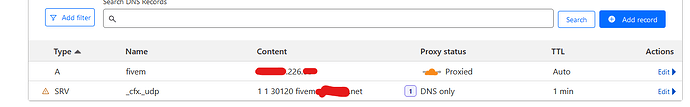

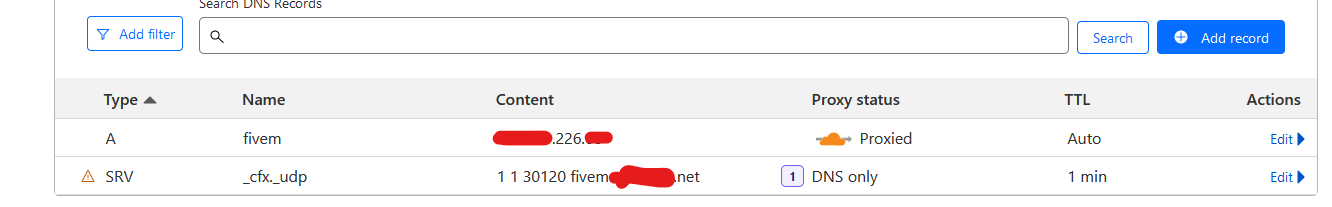

- linked my domain to that server as showin in the image
- configured my fivem config file as showin in the image
- copyed the cache files from my fivem server to the ubuntu server

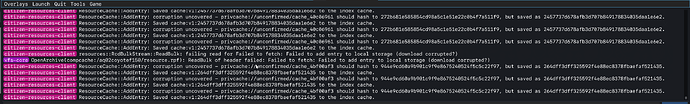

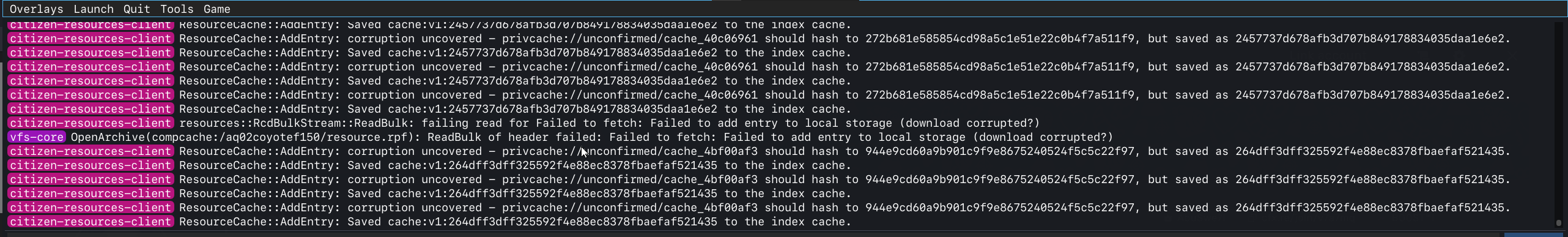

- when trying to download the files i get tihs error that showin in the image please help me what i’m missing at this point to resolve the issue?
FiveM Config Section:
set sv_forceIndirectListing true
set sv_listingHostOverride "fivem.domain.net"
set sv_proxyIPRanges "ProxyIP-ADDR/32"
set sv_endpoints "fivem-server-ipaddress:30120"
fileserver_remove ".*"
fileserver_add ".*" "https://fivem.domain.net/files"
adhesive_cdnKey "C7J0cc9I1JyCTg8A6kR6XxuSLsdT"
fileserver_list
/etc/nginx/nginx.conf
user www-data;
worker_processes auto;
pid /run/nginx.pid;
include /etc/nginx/modules-enabled/*.conf;
events {
worker_connections 768;
}
http {
sendfile on;
tcp_nopush on;
tcp_nodelay on;
keepalive_timeout 65;
types_hash_max_size 2048;
include /etc/nginx/mime.types;
default_type application/octet-stream;
ssl_protocols TLSv1 TLSv1.1 TLSv1.2 TLSv1.3;
ssl_prefer_server_ciphers on;
access_log /var/log/nginx/access.log;
error_log /var/log/nginx/error.log;
gzip on;
include /etc/nginx/conf.d/*.conf;
include /etc/nginx/sites-enabled/*;
}
include /etc/nginx/stream-proxy.conf;
/etc/nginx/stream-proxy.conf
stream {
upstream backend{
server fivem-server-ip:30120;
}
server {
listen 30120;
proxy_pass backend;
}
server {
listen 30120 udp reuseport;
proxy_pass backend;
}
}
/etc/nginx/sites-available/default
# Virtual Host configuration for example.com
#
# You can move that to a different file under sites-available/ and symlink that
# to sites-enabled/ to enable it.
#
#server {
# listen 80;
# listen [::]:80;
#
# server_name example.com;
#
# root /var/www/example.com;
# index index.html;
#
# location / {
# try_files $uri $uri/ =404;
# }
#}##
# You should look at the following URL's in order to grasp a solid understanding
# of Nginx configuration files in order to fully unleash the power of Nginx.
# https://www.nginx.com/resources/wiki/start/
# https://www.nginx.com/resources/wiki/start/topics/tutorials/config_pitfalls/
# https://wiki.debian.org/Nginx/DirectoryStructure
#
# In most cases, administrators will remove this file from sites-enabled/ and
# leave it as reference inside of sites-available where it will continue to be
# updated by the nginx packaging team.
#
# This file will automatically load configuration files provided by other
# applications, such as Drupal or Wordpress. These applications will be made
# available underneath a path with that package name, such as /drupal8.
#
# Please see /usr/share/doc/nginx-doc/examples/ for more detailed examples.
##
# Default server configuration
#
server {
listen 80 default_server;
listen [::]:80 default_server;
# SSL configuration
#
# listen 443 ssl default_server;
# listen [::]:443 ssl default_server;
#
# Note: You should disable gzip for SSL traffic.
# See: https://bugs.debian.org/773332
#
# Read up on ssl_ciphers to ensure a secure configuration.
# See: https://bugs.debian.org/765782
#
# Self signed certs generated by the ssl-cert package
# Don't use them in a production server!
#
# include snippets/snakeoil.conf;
root /var/www/html;
# Add index.php to the list if you are using PHP
index index.html index.htm index.nginx-debian.html;
server_name _;
location / {
# First attempt to serve request as file, then
# as directory, then fall back to displaying a 404.
try_files $uri $uri/ =404;
}
# pass PHP scripts to FastCGI server
#
#location ~ \.php$ {
# include snippets/fastcgi-php.conf;
#
# # With php-fpm (or other unix sockets):
# fastcgi_pass unix:/run/php/php7.4-fpm.sock;
# # With php-cgi (or other tcp sockets):
# fastcgi_pass 127.0.0.1:9000;
#}
# deny access to .htaccess files, if Apache's document root
# concurs with nginx's one
#
#location ~ /\.ht {
# deny all;
#}
}
# Virtual Host configuration for example.com
#
# You can move that to a different file under sites-available/ and symlink that
# to sites-enabled/ to enable it.
#
#server {
# listen 80;
# listen [::]:80;
#
# server_name example.com;
#
# root /var/www/example.com;
# index index.html;
#
# location / {
# try_files $uri $uri/ =404;
# }
#}
upstream backend {
server_fivem_server_ip:30120;
}
proxy_cache_path /srv/cache levels=1:2 keys_zone=assets:48m max_size=20g inactive=2h;
server {
listen 443 ssl;
listen [::]:443 ssl;
server_name fivem.domain.net;
# SSL is highly encouraged but optional. If not using SSL, comment the below and change the listen blocks above.
ssl_certificate /etc/nginx/certificate.pem;
ssl_certificate_key /etc/nginx/privkey.pem;
location / {
proxy_set_header Host $host;
proxy_set_header X-Real-Ip $remote_addr;
proxy_set_header X-Cfx-Source-Ip $remote_addr;
proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
proxy_pass_request_headers on;
proxy_http_version 1.1;
proxy_pass http://backend;
}
# if you do not wish to use the caching proxy, remove the below block
location /files/ {
proxy_pass http://backend$request_uri;
add_header X-Cache-Status $upstream_cache_status;
proxy_cache_lock on;
proxy_cache assets;
proxy_cache_valid 1y;
proxy_cache_key $request_uri$is_args$args;
proxy_cache_revalidate on;
proxy_cache_min_uses 1;
}
}
The Fix
FiveM Config Section:
set sv_forceIndirectListing true
set sv_listingHostOverride "fivem.domain.net"
set sv_proxyIPRanges "ProxyIP-ADDR/32"
set sv_endpoints "fivem-server-ipaddress:30120"
fileserver_add ".*" "https://real-proxy-ip-address/files"
adhesive_cdnKey "C7J0cc9I1JyCTg8A6kR6XxuSLsdT"
fileserver_list
add your cache files in the html/files directory
the files you want to add \data\cache\files
GOOD LUCK! EVERYONE.
