[REQUEST] Health/Armor Bar or Health/Armor Text Above Player HEAD?

FiveM Resource Development Discussion
1

Is it possible here? I’m thinking modifying some of scripts from IDs. But may someone could do it better? Heheh

2

Healt & Armor bay above a players head. Might be possible, you’d need to do something similar to the 3dme script, but change it to where it displays the food & water, and other stats.

3

It is possible, but I don’t think with the current sync it will work out tho.

4

Here’s a code snippet of how I use this. It’s in Typescript, but should be easily translateable. If the person doesn’t have any armor, then the armor bar is not shown.

Green = health
Blue = armor

I used [Release] Custom Head Labels as a starting point.

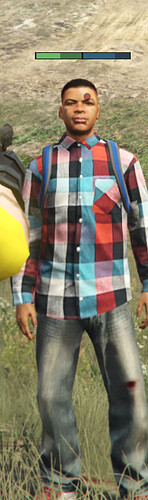

What it looks like without the ID:

Screenshot

FiveM_GTAProcess_2019-06-09_18-11-29
FiveM_GTAProcess_2019-06-09_18-11-29188×632 69.7 KB

The snippet below also contains the ID that is drawn to the left of the bar.

import { ClientPlayerId, ClientPlayerPedId } from './common';

const maxDistance: number = 35;
const width: number = 0.03;
const height: number = 0.0085;
const border: number = 0.001;
const screenResolution: number[] = GetScreenActiveResolution();

setTick(() => {
  const camCoords = GetGameplayCamCoords();
  const fov = GetGameplayCamFov();

  for (let index = 0; index < 255; index++) {
    if (!NetworkIsPlayerActive(index)) {
      continue;
    }

    const target = GetPlayerPed(index);

    if (ClientPlayerPedId === target || !DoesEntityExist(target) || IsEntityDead(target)) {
      continue;
    }
    const targetPos = GetEntityCoords(target, true);
    DrawNameTag(targetPos[0], targetPos[1], targetPos[2] + 0.5, camCoords, fov, target, index);
  }
});

function DrawNameTag(
  x: number,
  y: number,
  z: number,
  camCoords: number[],
  camFov: number,
  otherPed: number,
  otherPlayer: number,
) {
  const dist = GetDistanceBetweenCoords(camCoords[0], camCoords[1], camCoords[2], x, y, z, true);
  if (dist <= maxDistance) {
    const screenCoords: number[] = GetScreenCoordFromWorldCoord(x, y, z);

    if (screenCoords[0] === 0) {
      return;
    }
    let scale = dist / maxDistance;
    scale = (scale + scale * camFov) / 2;
    if (scale < 0.6) {
      scale = 0.6;
    }

    let health = GetEntityHealth(otherPed);
    health = health < 100 ? 0 : (health - 100) / 100;

    const armour = GetPedArmour(otherPed) / 100;
    y = screenCoords[2];
    y -= scale * (0.005 * (screenResolution[1] / 1080));
    x = screenCoords[1];

    if (IsPlayerFreeAimingAtEntity(ClientPlayerId, otherPed)) {
      const y2 = y;
      DrawId(x - 0.0225, y2 - 0.0125, otherPlayer);
      if (armour > 0) {
        let x2 = x - width / 2 - border / 2;
        DrawRect(x2, y2, width + border * 2, 0.0085, 0, 0, 0, 200);
        DrawRect(x2, y2, width, height, 68, 121, 68, 255);
        DrawRect(x2 - (width / 2) * (1 - health), y2, width * health, height, 114, 203, 114, 200);

        x2 = x + width / 2 + border / 2;
        DrawRect(x2, y2, width + border * 2, height + border * 2, 0, 0, 0, 200);
        DrawRect(x2, y2, width, height, 41, 66, 78, 255);
        DrawRect(x2 - (width / 2) * (1 - armour), y2, width * armour, height, 48, 108, 135, 200);
      } else {
        DrawRect(x, y2, width + border * 2, height + border * 2, 0, 0, 0, 200);
        DrawRect(x, y2, width, height, 68, 121, 68, 255);
        DrawRect(x - (width / 2) * (1 - health), y2, width * health, height, 114, 203, 114, 200);
      }
    }
  }
}

function DrawId(x: number, y: number, id: number) {
  SetTextFont(4);
  SetTextScale(0.35, 0.35);
  SetTextProportional(true);
  SetTextColour(255, 255, 255, 225);
  SetTextOutline();
  SetTextEntry('STRING');
  AddTextComponentString(`${GetPlayerServerId(id)}`);
  DrawText(x, y);
}

(Yes I know, I could be using GetActivePlayers())

4 Likes
5

I’m knew to fivem scripting, but i’m willing to learn more. I just wanna ask if this going to JS or lua?

6

It’s a snippet, you can use it wherever you like. The logic stays the same.

1 Like
7

Thank you sir, Understood.

8

Can someone please translate this to lua?
much appreciated

9

can do script for this sir

10

Thanks for posting the snippet, really helpful

It needs a couple of changes to work on lua but it was worth :wink:
