[Regression] DUIs not rendering on runtime textures

FiveM Discussion Bug Reports
, ,
1
  1. Client (production/canary) and FXServer version
  • Canary only | Any FXServer version
  1. What you expected to happen
  • The canary build should display DUI in runtime textures normally
  1. What actually happens
  • Using canary DUI doesn’t show at all in runtime textures
  1. Category of bug (eg. client, server, weapons, peds, native)
  • Client
  1. Reproducible steps, preferably with example script(s)
    Example script: GitHub - kasuganosoras/hologramspeed: 🔢 FiveM hologram speedometer
    Start the resource, spawn a vehicle and use “/hsp” to toggle the speedometer.

Seems like Canary regressed but i don’t know when as i only noticed this today.

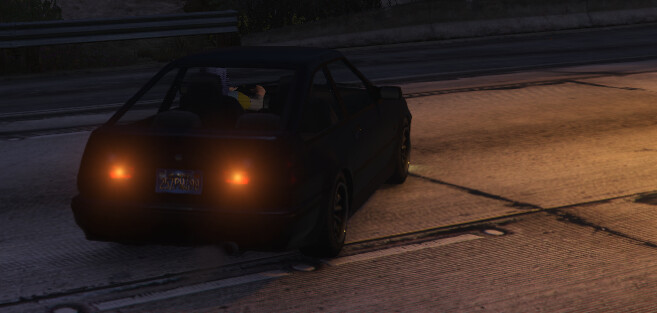

Production:

Canary:

2

Likely a side effect from tweak(nui/core): behavioral cleanup + no 'root' page for main UI · citizenfx/fivem@e5cae69 · GitHub, since I didn’t have any resource using DUI bits at hand I didn’t test with it.

Will look into this.

3

Culprit was the part where CreateTextureFromShareHandle was made async, this should be fixed in fix(nui/core): DUI cleanup in NUIWindow · citizenfx/fivem@026c20a · GitHub.

1 Like
4

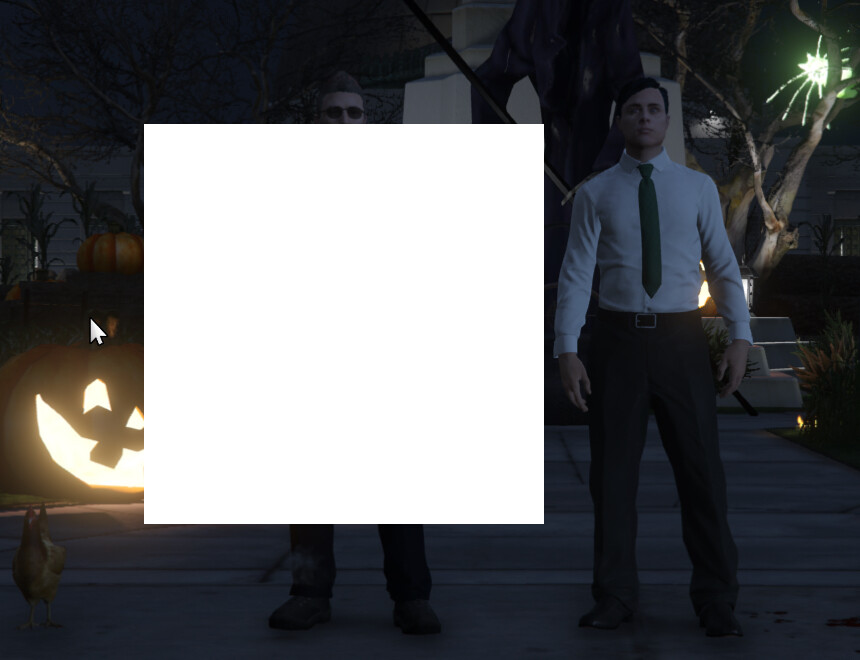

Hi, I’m using DUI with DrawSprite and following the change above, the texture drawn by the sprite has changed from transparent to solid, but the content is still not visible.

FswN2Nb
FswN2Nb860×660 74.3 KB

5

The following repro works on beta but not on Canary


local txdName = "duiTxd"
local txtName = "duiTex"
local txd = CreateRuntimeTxd(txdName)
local duiObject = CreateDui("https://forum-cfx-re.akamaized.net/original/4X/f/7/b/f7bd789d9d3ad55ff91dc57979e485e99e1a5273.png", 1152, 256)
CreateRuntimeTextureFromDuiHandle(txd, txtName, GetDuiHandle(duiObject))


Citizen.CreateThread(function()
    while true do
        Wait(0)
        DrawSprite(txdName, txtName, 0.5, 0.5, 0.5, 0.5, 0.0, 255, 255, 255, 255)
    end
end)
1 Like
6

The resource linked in the original post worked fine, wonder what makes this one broken still. :open_mouth:

(my suspicion is that since this script doesn’t wait for IsDuiAvailable - FiveM Natives @ Cfx.re Docs, it gets a null texture handle as a result, which is something I’m not sure is fixable without some hacky trick for DUI->runtime texture conversion to be triggered only when available)

7

Fixed again: fix(nui): make DUI handles work for delayed textures · citizenfx/fivem@09e0031 · GitHub.

3 Likes
