[HOW-TO] How to stream custom marker!

[Lorraxss]

STEP 1 : Create your PNG or DDS file

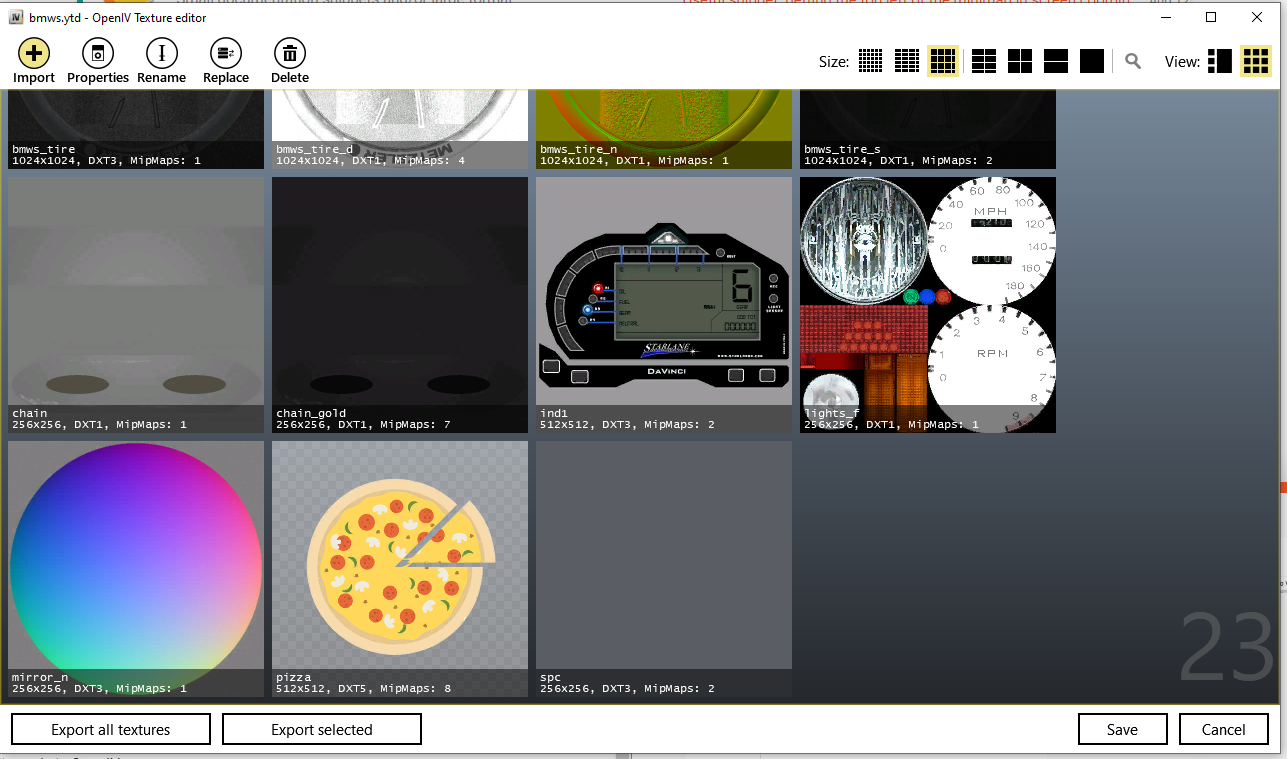

STEP 2 : Import your png to ydt texture via OpenIV. In this tutorial we import it to my addon car

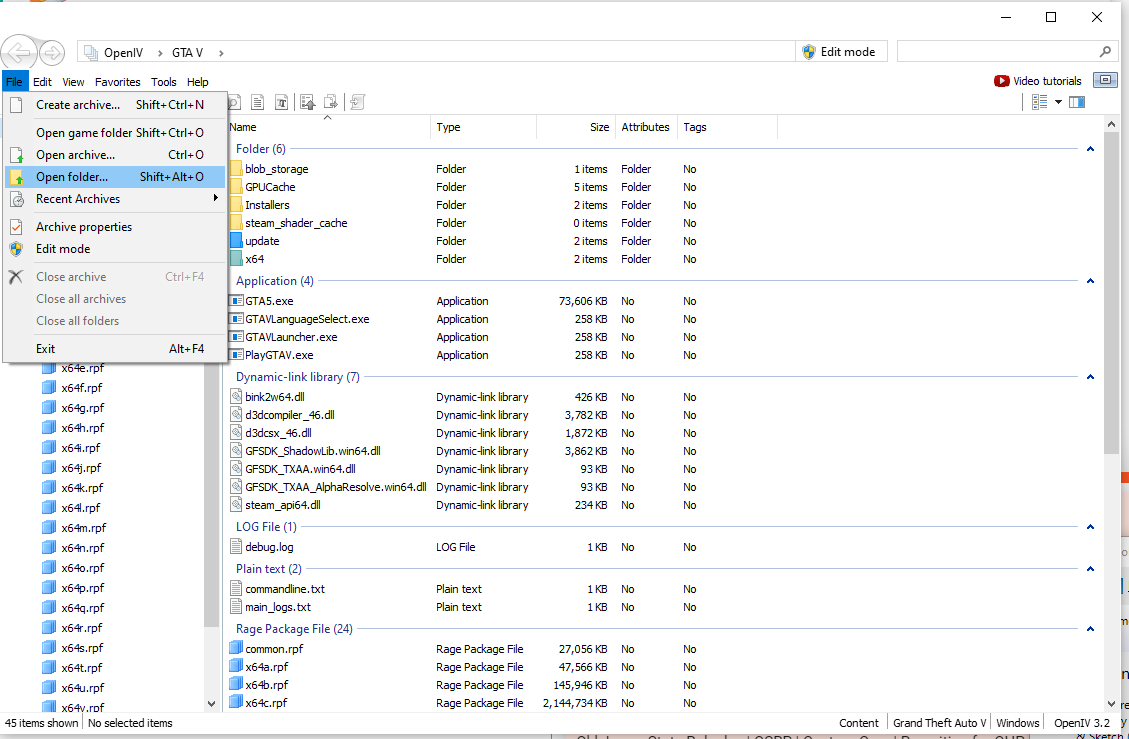

1. Open stream folder





2. Toggle edit mode in OpenIV

3. Open .ytd file and import your png.


4. Save and stream your file

STEP 3 : Draw it

DrawMarker(9, x, y, z, 0.0, 0.0, 0.0, 0.0, 90.0, 0.0, 3.0, 3.0, 3.0, 255, 255, 255, 255,false, false, 2, true, "your-ytd-name", "your-png-name", false)

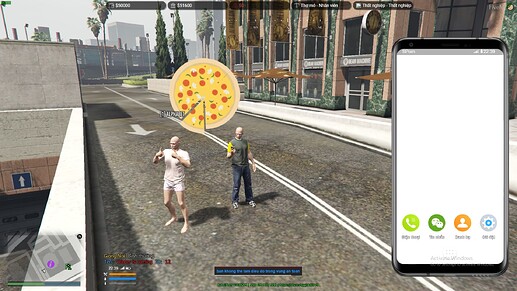

Example : i was import pizza.png to bmws.ytd, so

Citizen.CreateThread(function()
    while true do
        Citizen.Wait(0)
		if not HasStreamedTextureDictLoaded("bmws") then
				RequestStreamedTextureDict("bmws", true)
				while not HasStreamedTextureDictLoaded("bmws") do
					Wait(1)
				end
			else
			DrawMarker(9, -268.8787, -991.3987, 32.00805, 0.0, 0.0, 0.0, 0.0, 90.0, 0.0, 3.0, 3.0, 3.0, 255, 255, 255, 255,false, false, 2, true, "bmws", "pizza", false)
		end
    end
end)

[Sefuo]

thanks bro

[Liones_Thang]

Hi dude, can you help me about your script, because i have done all the script but when i’m back on my local host sv i can’t see it, but first thank you so much about your great script. @tringuyenk19

[The_Mist]

why all pictures are cut to half

[0324bence]

Is it possible to stream 3d models as markers? To add depth to them.

[lemonimoTV]

did you find out ?

[GoneSeeder]

same issue, i dont know how to fix this

[UnemployedPing]

great job, how would you add the DrawDistance

[Kattrigerkatta]

(I already posted this under the video version of this post, but I thinky it’s better to share this snippet)

A little code snippet for people whose ass is as lazy as mine to open OpenIV.

local dobj = CreateDui('LINK OF THE IMAGE', 256, 256)
local duiHandle = GetDuiHandle(dobj)
local dict = CreateRuntimeTxd('marker') -- dictionary name
local txd = CreateRuntimeTextureFromDuiHandle(dict, 'marker', duiHandle) -- texture name

Enjoy it!

[sunli88]

How do I add 2 or 3 markers?

[np_dev]

You can create multiple custom markers by creating a Config with values and then creating a loop with the 4 lines from @Kattrigerkatta. I think thats the easiest way.

[Merumond]

Did you find a way to fix this?

[Kattrigerkatta]

(Update)
I have posted a code snippet + api code to fix the background bug with transparent textures

[Code-Snippet]: Stream custom transparent textures without background

Hey, a few people from the forum have asked me if I can share the api to stream transparent images as markers, without white background. So here is the code (and an example of lua): (node js | I’m actually wayy too lazy rn to create a repo ), import express from 'express'; import url from 'url'; import querystring from 'querystring'; const app = express(); let port = 1337 // get image without white background // app.get('/getImg', (req, res) => { const headers = req.headers; …

[rRadics]

Use 34 marker id and it’ll work.

[_Ex_Music]

Hello Thanks For Your Hard Work is there any way that i can put a custom marker on the vrp/modules/basic_garage ?

vRPclient.addMarker(source, {x, y, z-1, 1.5, 1.5, 1.5, 200,0,0, 125, 150,36})

[MrPorter2022]

I work arround.

Put the image in the right and bottom.


What is your city? Sou do Brasil
