GetPedTextureVariation and GetPedDrawableVariation always seems to return 0?

FiveM Resource Development Discussion
1

Im very confused. Simply returns 0 regardless of what the player is wearing with any drawableId passed…

2

They return just fine for me?

print(GetPedDrawableVariation(PlayerPedId(), 6))
print(GetPedTextureVariation(PlayerPedId(), 6))

For my freemode ped this^ returns 31 and 2 respectively. Maybe you used the natives the the wrong way?

3

Without any example of your code it is impossible to help you.

4



5

I would imagine the problem lies in the following code for loading the player model and setting the player to it…

I cant seem to find the issue though:

clothing = {
    modelMappings = {
        Male = "mp_m_freemode_01",
        Female = "mp_f_freemode_01"
    }
}

clothing.loadModel = function(modelGender)
    print(modelGender)
    local model = clothing.modelMappings[modelGender]

    if not model then
        print("Big error... model doesnt exist")
    end

    model = GetHashKey(model)

    while not HasModelLoaded(model) do
        RequestModel(model)
        Citizen.Wait(1)
    end

    SetPlayerModel(PlayerId(), model)

    SetModelAsNoLongerNeeded(model)

    SetPedDefaultComponentVariation(PlayerPedId())
end
6

And also, GetPedPropIndex works fine

7

Have you set their drawables and then tested this native?

8

That was the issue… Woulda thought the SetPedDefaultComponentVariation would do similar?

Maybe thats a bug?

9

I would presume that if you use SetPedDefaultComponentVariation all the drawable and texture variation would be set to 0. So I’m not sure what the issue is, am I missing something?

10

The default ones aren’t always 0 as far as im aware? For instance with the freemode peds, i don’t think 0 are the default components?

11

0 is the default component id, hence why GetPedDrawableVariation returns 0 after you call the SetPedDefaultComponentVariation native.

Here is some code you can use to test it.

local compList = {
    [0] = "Head",
    [1] = "Beard",
    [2] = "Hair",
    [3] = "Torso",
    [4] = "Legs",
    [5] = "Hands",
    [6] = "Foot",
    [7] = "------",
    [8] = "Accessories 1",
    [9] = "Accessories 2",
    [10]= "Decals",
    [11] = "Auxiliary parts for torso",
}

RegisterCommand("componentTest", function(source, args, rawCommand)
    local playerPed = PlayerPedId()
    local oldComponents = {}
    for i = 1, 11 do
        oldComponents[i] = {}
        oldComponents[i].draw = GetPedDrawableVariation(playerPed, i)
        oldComponents[i].texture = GetPedTextureVariation(playerPed, i)
    end

    SetPedDefaultComponentVariation(playerPed)

    local components = {}
    for i = 1, 11 do
        components[i] = {}
        components[i].draw = GetPedDrawableVariation(playerPed, i)
        components[i].texture = GetPedTextureVariation(playerPed, i)
    end

    for index, data in pairs(components) do
        print(compList[index].." was "..oldComponents[index].draw.."/"..oldComponents[index].texture.." but after SetPedDefaultComponentVariation it is "..data.draw.."/"..data.texture)
    end
end, false)

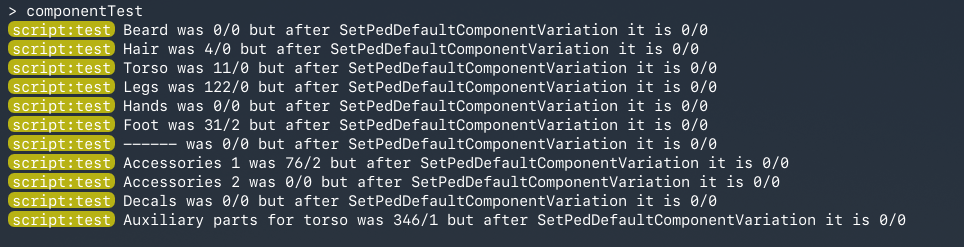

This is what it returned for me:

2
2964×247 121 KB

Edit: Added GetPedTextureVariation into the code to show it as well.

12

That makes sense. Thanks for clearing that up :slight_smile:
