Fivem handling editor NUI

lvScripts · June 2, 2025, 2:54pm

Handling-Editor NUI for FiveM

A powerful, in-game handling editor that lets you tweak vehicle physics on the fly—no server restart required. Perfect for developers, server operators and tuning enthusiasts who want fine-grained control over every handling parameter.

Key Features

1. Real-Time Handling Tweaks

Adjust floats, integers and vectors (e.g. centre-of-mass, inertia) live on your vehicle.
Changes apply instantly—no need to exit the menu or respawn.

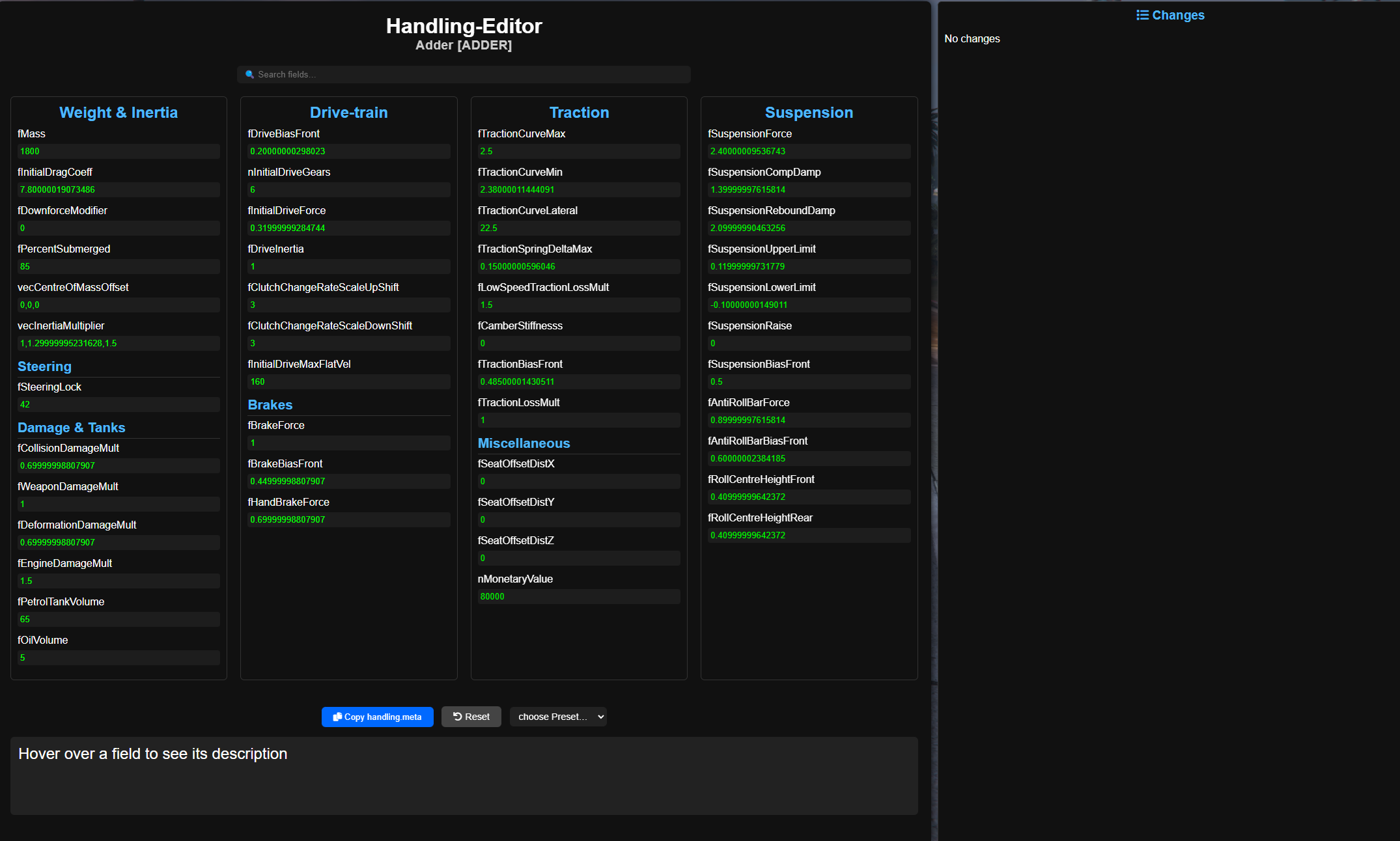

2. Four-Column, Categorized Layout

Weight & Inertia, Drive-train, Traction, Suspension panels all on one row.
Custom panel grouping: you decide which sub-categories live together.
Clean, responsive CSS grid—no unnecessary scrolling.

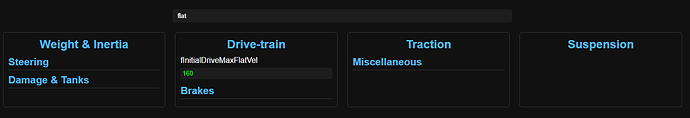

3. Live Search & Filtering

Quickly filter fields by name.
Dynamic “type-ahead” hides non-matching entries as you type.

4. Range Sliders & Numeric Inputs

For fields with known min/max values (configurable), a sleek HTML5 <input type="range">.
Fallback number inputs for everything else.

5. Presets & Reset

Define custom presets (Drift, Off-road, Race, etc.) in your config.lua.
Apply a preset with one click—only those fields change, everything else stays intact.
Reset button restores the vehicle’s original handling data (as on first spawn).

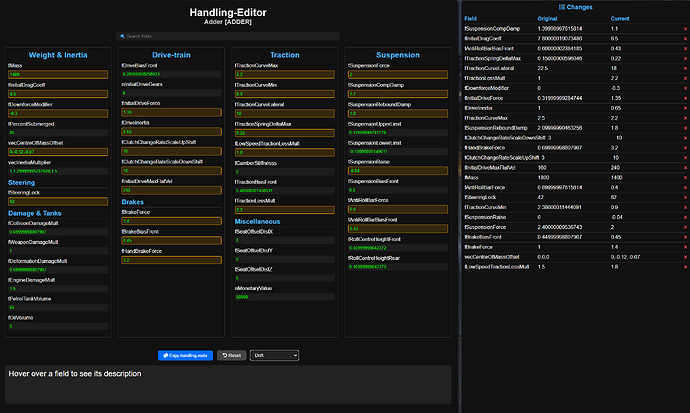

6. Change-Log Panel

A collapsible sidebar lists exactly which fields you’ve modified:
| Field | Original | Current | Undo |
Hover over a value in the main editor to see its description in the tooltip box.
Undo any single change with a icon—instantly reverts that field and clears its highlight.
Modified fields are visually highlighted in orange for easy tracking.

7. Tooltips & Localization

Hover any field to show a multi-line description (pulled from localized JSON).
Default hint: “Hover over a field to see its description.”
Fully translatable: ship your own locales/en.json, locales/de.json, etc.

8. Icons & Transitions

Font Awesome icons for copy, undo, and changes list.
Smooth CSS transitions on hover, toggle, and slider interactions for a polished UX.

9. Framework-Agnostic

Works equally well on ESX, QB-core, or any custom FiveM framework.
Exposes simple NUI callbacks (updateField, applyPreset, resetHandling, copyMeta, close)—integrate however you like.

10. Copy to Clipboard

One-click “Copy handling.meta” exports your current setup in XML format, ready for inclusion in your vehicles.meta.
